Upright Sprinklers

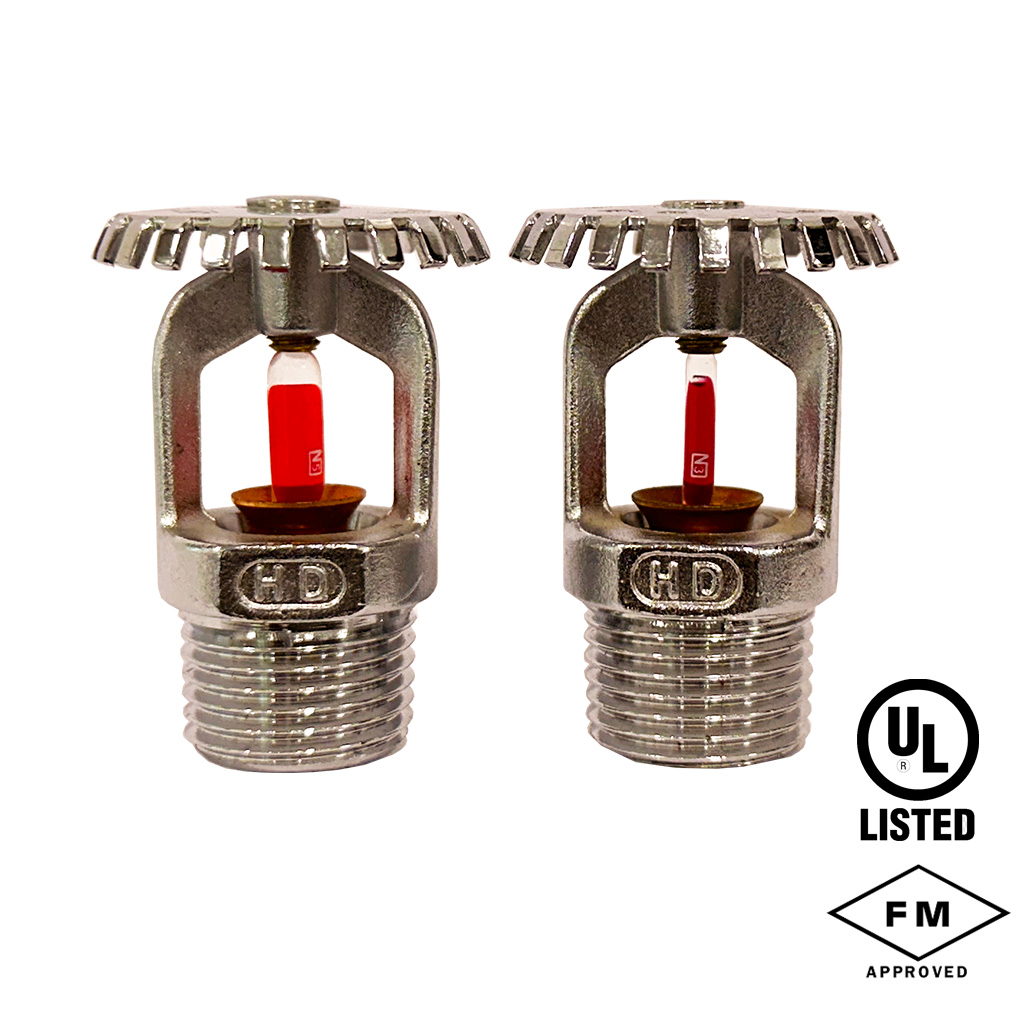

HD Upright Sprinkler is a small, thermosensitive, glass-bulb spray sprinkler available in several different finishes and temperature ratings to meet design requirements.

Sprinkler is UL Listed and FM Approved. During fire, the heat-sensitive liquid in the glass bulb expands, causing the glass bulb to shatter. Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern in order to control or extinguish fire.

DESCRIPTION

  • Upright mounting
  • Standard and quick response with standard coverage
  • Temperature rating : 57°, 68°, 79°& 93°C
  • K-factor: 5.6 (80)
  • Element: Glass bulb
  • Occupancy Type: Light Hazard, Ordinary Hazard, Extra Hazard
  • Thread Size: 1/2″ BSPT
  • Max Pressure: 175 psi (12 bar)
  • Brass, Chrome or White (RAL 9010), Custom colour shade available on request
  • Sprinkler Wrench: Model SP-M
  • Approvals: UL Listed and FM Approved (Refer to the catalogue for details)

FAQ

What is the difference between upright sprinkler and pendent sprinkler?

Upright sprinklers face upward and spray water down, ideal for open ceilings and obstructions. Pendent sprinklers hang down, suited for finished ceilings.

What is an upright type sprinkler?

An upright sprinkler is mounted above the pipe with the deflector facing upward, spraying water downward to cover obstructed areas.

What are the three types of sprinklers?

Upright, Pendent, and Sidewall sprinklers.

What are the benefits of upright sprinklers?
  • Best for warehouses and industrial spaces
  • Work well around obstructions
  • Easy to install above pipes
  • Available in multiple finishes and response types

Specifications – Upright Sprinkler

Parameter Details
Mounting
Upright
Response
Standard and Quick Response (Standard Coverage)
Temperature Rating
57°C, 68°C, 79°C & 93°C
K-Factor
5.6 (80)
Element
Glass Bulb
Occupancy Type
Light Hazard, Ordinary Hazard, Extra Hazard
Thread Size
1/2″ BSPT
Max. Pressure
175 psi (12 bar)
Finishes
Brass, Chrome, White (RAL 9010), Custom Colours on Request
Sprinkler Wrench
Model SP-M
Approvals
UL Listed & FM Approved (Refer to catalogue for details)
